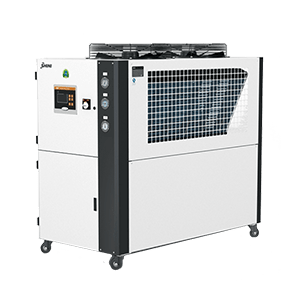

Industrial Online Water Chiller

Description

Industrial Online Water Chiller

Industrial Online Water Chiller
Features –
5 TON Online Chiller Plant

We trust you’ll notice our provide in line together with your needs.
In case should you desire to
have any further confirmation/clarification please feel free to contact us.
8604558300, 8604158000

TECHNICAL DETAILS

Designed For Cooling Water Analysis
Total Dissolved Solids: 100 [Max]
TREATED WATER PARAMETERS [EX-RO PLANT]
TDS mg/l : < 75 ppm
pH : 5.5 – 6.5
LIMITING CONDITIONS OF THE CHILLER PLANT:
a. OXIDISING ELEMENTS: NIL
b. IRON: NIL
c. OIL & GREASE: NIL
d. WATER SOURCE: BOREWELL
e. pH: 4 – 11
f. CHLORINE: NIL
g. SDI : 3 (Max)
DESIGN PARAMETERS
1. FEED FLOW: 1000 LPH
2. PERMEATE FLOW: 1000 LPH
3. MAXIMUM INLET TDS: 1500 ppm
4. PERMEATE TDS : < 75 ppm
5. RECOVERY: 100%
6. INLET PRESSURE : 3.0 Kgs/cm2
7. POWER: 3-Phase, 440 V AC
SCOPE OF SUPPLY
1. Compressor: KIRLOSKAR Copeland 5 Tons
2. Water Flow Switch
3. Supply Pump: 1 hp( additional)
4. Flow Rate: 1000 lph
5. Flow Temp: 12 Degree Centigrade Approx
6. Temperature Meter
8. SKID [MS] : One
9. ROF INDICATOR: Two
10. CONDUCTIVITY INDICATOR [0-200 μs] : One
11. INTERCONNECTING PIPEWORK: One Lot [COPPER]
12. LP SWITCH [PVC]: One
13. pHE: alfa level high pressure
14.Input supply: 3 phase
15.Input voltage: 440 volts of phase
16. Inlet water temperature: 22-degree max
17. Outlet water temperature: 12 degrees approx
18. The full machine is designed on copper
19. Max duty cycle 8 hours a day
